down hole hammer drill air percussion drilling rig, compressed air drilling

Name: down hole hammer drill air percussion drilling rig compressed air drilling
Brand: GOLD
Price: 1 USD

Place of Origin : China

Brand Name : GOLD

Certification : CE

Model Number : CS200EH

MOQ : 1 set

Packaging Details : Plastic sheeting or wooden case for drilling rig

Delivery Time : 10 days

Payment Terms : T/T, West union, L/C

Supply Ability : 100 sets per month

Price : EXW USD5000/set

Warranty : 12 months

Contact Now

Vivienne

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803

Fax:+86-23-62940030 Skype:viviennecq

Product Description

down hole hammer drill air percussion drilling rig, compressed air drilling

Specification

Item	Name		Specifications	Supplier	Remarks
1	Structure	L×W×H mm	12700×3450×5000		Dry dust collecting outside plug-in type, not included inside
1	Structure	Weight kg	33000
2	Chassis	track assembly	PC200-7(lengthening)
		Travel motor	GM 35L-D-76-140-3
		total displacement of Motor(full/half)	140/76
		Travel speed	2.0/1.0( Fast/slow block)
		Gradeability	≥20°
3	Drilling parameters	Drilling diameter mm	138~202
		Drilling depth m	18m		Can be option
		Boom swing angle	0~40°
		Drilling angle	-15°~+60°		Vertical basis
		Swing angle about the propeller	±20°		Advancing with the angle of the vertical line
		Drilling rods diameter mm	114		According drilling diameter
		Drilling rods length m	9
		Drill library drill pipe capacity	1 pieces
4	Compressure parameter	Model	E1000RH	Sullair	Add a set of pre-filter
		Output pressure MPa	2.07
		Displacement m3/min	28.3
		Motor type	Y2-355L-4
		Power kW	250
5	Power System	Engine model	4BTAA B3.9 C115	CUMMINS
		Power kW	86/2200rpm
		Max. torque N.m	447/1500rpm
		Motor type	Y2-225M-4
		Power kW	45
		Hydraulic pump Model	A1OV045	Hightech	Rexroth technology
		Displacement ml	45	Hightech	Rexroth technology
6	Advance Parameter	Advance motor model	IY3-1000IZD47+F	YINING
		Output torque N.m	2800
		Total displacement ml	1078
		Propulsion force (lift) kN	0~39		Continuously adjustable
		Propulsion speed (lift)	0~26m/min		Continuously adjustable
7	Rotation Parameter	cycloid Motor Model	604-1384	YIDUN
		Displacement ml	160
		Gearbox reduction ratio	4.3
		Rotary torque Nm	4700
		Working rotation speed rpm	0~44/0~88		Two steps of continuously adjustable
8	American Box changes	Rated capacity kVA	500
8	American Box changes	Rated input voltage KV	6
9	Others	Impactor	RH550		Sandvik
		Control type	PLC
		Electrical system voltage V	DC24
		Catching dust way	Wet type+ dry type		Bring their own water tank, available for the eight-hour work
10	Working condition	Maximum altitude m	3000
10	Working condition	Ambient temperature	-40~50℃

Buy cheap down hole hammer drill air percussion drilling rig, compressed air drilling product

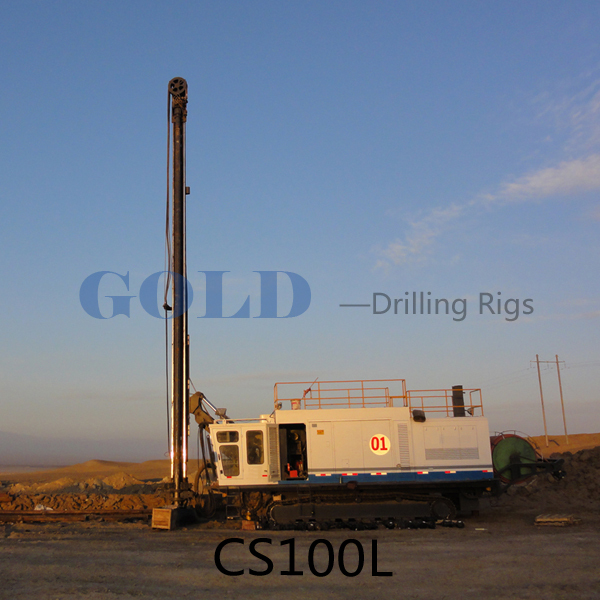

down hole hammer drill air percussion drilling rig, compressed air drilling Images
