600m XYX-3 China machinery supplier water well drilling rig used for wells

Product Categories
Chongqing Gold Mechanical & Equipment Co., Ltd
Contact Now

600m XYX-3 China machinery supplier water well drilling rig used for wells

  • 1
  • 2

Place of Origin : China

Brand Name : GOLD

Certification : CE

Model Number : XYX-3

MOQ : 1 set

Price : EXW USD5000/set

Packaging Details : Plastic sheeting or wooden case for drilling rig

Delivery Time : 10 days

Payment Terms : T/T, West union, L/C

Supply Ability : 100 sets per month

Warranty : 12 months

Contact Now

600m XYX-3 China machinery supplier water well drilling rig used for wells

Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]



Highly compacted water well drilling machine XYX-3

Widely used in any situation

Best Choice for your projects!!!



Pictures of Product

600m XYX-3 China machinery supplier water well drilling rig used for wells

Specifaction

600m XYX-3 China machinery supplier water well drilling rig used for wells

Drilling       depth                              m 100 250 300 600
Drilling  DI                        mm 300 200 150 75
Open hole DI mm 300
End hole  DI                         mm 75
Drilling rod                                mm Φ60
Drilling angle                              90°-65°
Rotary Spindle
Spindle forward speed                  r/min 30-1050
Spindle reverse speed                  r/min 29-137
Spindle stroke                             mm 560
Spindle inner diameter                  mm 96
Spindle lifting capacity              KN 60
Main Winch  ( drive hydraulic system)
Single line lifting speed                 m/min 0-45
Hug floodgate belt width                    mm 90
Tightrope diameter                         mm 14
Hoist single line lifting capacity       KN 40
Roller diameter                              mm 200
Roller cubic measure                        m 30
Gear Oil pump
Duplex gear oil pump           CBF-F63/25
Front displacement,pressure            63mL/r    20Mpa
Behind displacement,pressure          25mL/r    20Mpa
Drilling rig Power
Diesel engine                              Hp    R4105ZD    50HP
Electric motor                                 KW    Y180L-4      22KW
Packaging & Shipping

600m XYX-3 China machinery supplier water well drilling rig used for wells

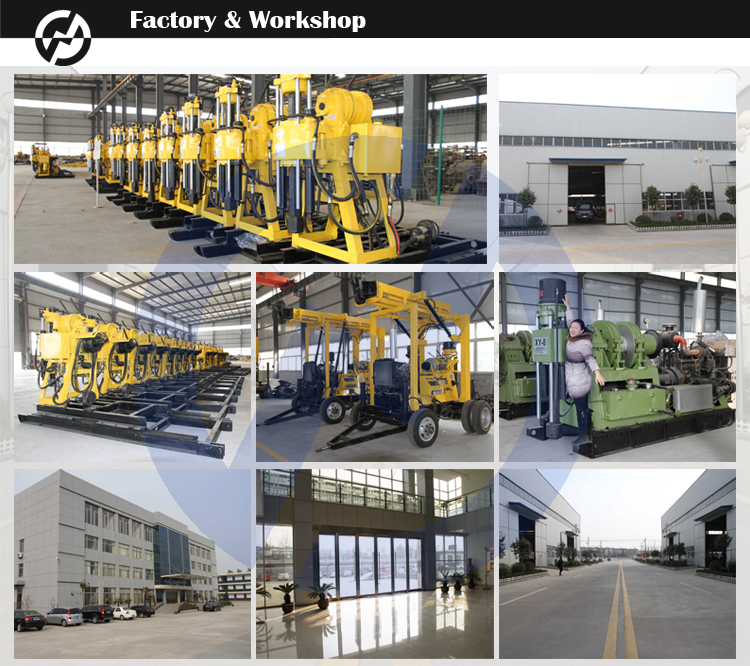

Our Company View

600m XYX-3 China machinery supplier water well drilling rig used for wells

Exhibition&Customer

600m XYX-3 China machinery supplier water well drilling rig used for wells
