Crawler MDL-150 tough terrain horizontal directional drilling rig

Place of Origin : Chongqing

Brand Name : GOLD

Certification : CE

Model Number : mdl-150

MOQ : 1 set

Packaging Details : Plastic sheeting or wooden case for drilling rig

Delivery Time : 10 days

Payment Terms : T/T, West union, L/C

Supply Ability : 100 sets per month

Price : EXW USD5000/set

Warranty : 12 months

Contact Now

Crawler MDL-150 tough terrain horizontal directional drilling rig

Vivienne
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803
Fax:+86-23-62940030 Skype:viviennecq
[Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]



Horizontal directional drilling rigMDL-150Crawler MDL-150 tough terrain horizontal directional drilling rig

Crawler MDL-150 tough terrain horizontal directional drilling rigCrawler MDL-150 tough terrain horizontal directional drilling rig

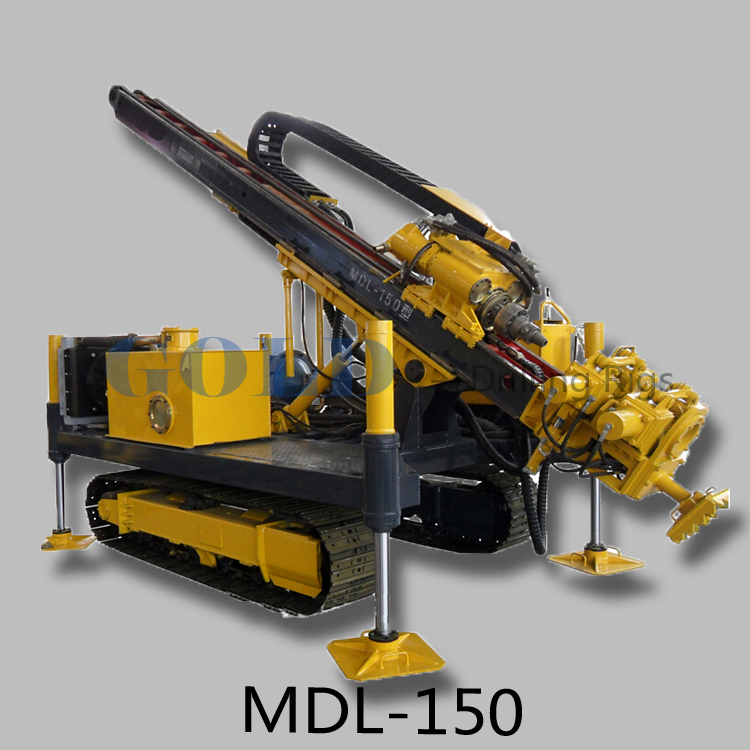

Crawler MDL-150 tough terrain horizontal directional drilling rig

Basic parameter
Drilling diameter (mm) 150-250
Rotary spray pile diameter (mm)
Drilling depth (m) 130-200
Drill rod caliber/Tube diameter (mm) 73, 89, 102, 114
Drill pipe inclination angle (°) 0-90
Gyrator parameter
Rated output speed (r/min) 10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170
Rated output torque (N.m) 7500
Route (mm) 3400
The route of shaft shackle slipping (mm) 900
Lifting power (kN) 70
Lifting speed (m/min) 0-5(adjustable), 7, 23, 30
Pressure (kN) 36
Pressure speed (m/min) 0-10(adjustable), 14, 46, 59
Parameter of whole machine
Input power(electric motor) (kW) 55+18.5
Overall dimension of main engine
Transport state(length*width*height) (mm) 5400*2100*2000
Construction state(length*width*height) (mm)
Weight of main engine (kg) 6000
Walking parameter
Walking pattern   Crawler walking
Climbing angle (°) 25
Crawler ground bearing (kPa) 37.8
Traveling speed (km/h) 0.4
Turning parameter
Turning way   Whole manual rotation
Turing structure   Pivotal bearing
Location mode   Locating pin
Auxiliary parts situation
Holder shackle device   Standard configuration
Crawler chassis   Standard configuration
